Initialization of the SPIRO APP: Review of the source file

Details

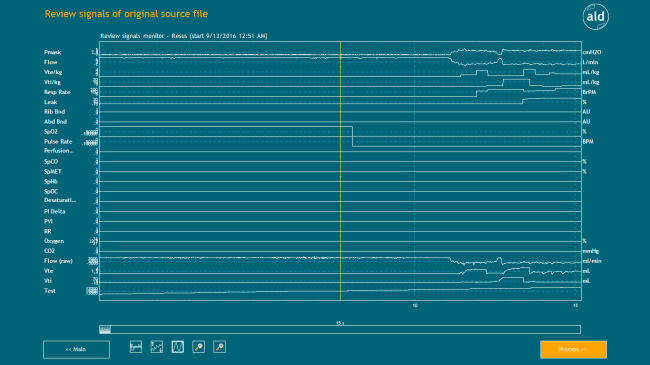

Review signals of original source file
In this reviewer the loaded signals are reviewed.
To scroll the signals in the reviewer, drag the scroll bar at the bottom to the left or right, or position the mouse on the yellow Center Cursor and drag it to the left or right.


Additionally the signals can be scaled and zoomed by clicking the respective buttons below this previewer (from left to right).
1. button: automatic zeroing of the offsets of all signals.
2. button: automatic adaption of all signal offsets (shifting up and down)
3. button: automatic scaling of all signals (adaptation of the shown signal ranges according to the value ranges of the signals) If a signal is indicated in the reviewer and it is not visible, this might be due to an inappropriate value range.
4. button: zoom out
5. button: zoom in

<< Main
This button directs back to the initialization ("Initialization of the SPIRO APP").

Process >>
This button starts processing of the source file for the spirometric analysis ("Process the source file and calculate spirometric parameters").
