Pulmochart Reference (ver. 5.5)
Review of spirometric trendlines of a previous FLOW/PRES analysis.

Initialization of the SPIRO APP: Review trendlines of calculated variables per breath

Overview

The signals of the chosen breath triggered results file can be reviewed.

Details

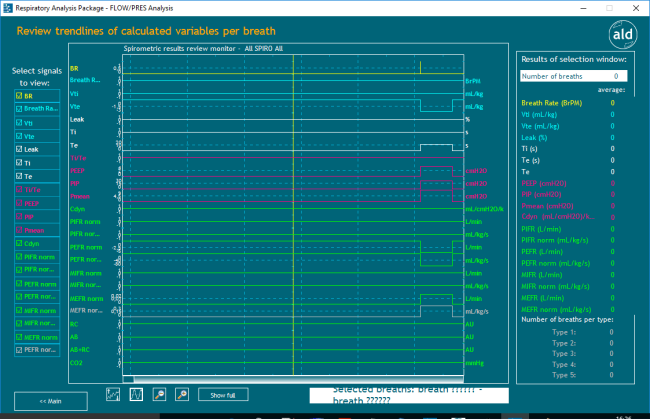

Spirometric results review monitor
In this viewer the loaded breath triggered signals are previewed. The signals shown in the reviewer can be chosen by checking/ unchecking the respective channel boxes in the panel Select signals to preview:.
To scroll the signals in the reviewer, drag the scroll bar at the bottom to the left or right, or position the mouse on the yellow Center Cursor and drag it to the left or right.


Additionally the signals can be scaled and zoomed by clicking the respective buttons below this previewer (from left to right).
1. button: automatic adaption of all signal offsets (shifting up and down)
2. button: automatic scaling of all signals (adaptation of the shown signal ranges according to the range of values of the signals) If a signal is indicated in the reviewer and it is not visible, this might be due to an inappropriate value range.
3. button: zoom out
4. button: zoom in

The button Show full shows the signals in full length in the reviewer. Depending on the signal length they are zoomed in or zoomed out.

Breaths of special interest can be selected in the reviewer with the mouse. These selected breaths are indicated in the white panel below the reviewer.

Results of selection window:
This panel shows the mean values of selected breathes, indicated in the white panel at the bottom.

Number of breathes per type
This panel shows how many breathes were labeled as different types with the five different markers.

<< Main
This button directs back to the initialization ("Initialization of the SPIRO APP").
