Check and correct the automatic insp and exp detection in calibrated AB+RC signal
Overview
The previously calculated inspiratory- and expiratory onsets for the calibrated AB+RC signal can be checked and corrected in the reviewers.Details
The inspiratory- and expiratory onsets of the calibrated AB+RC signal can be checked and corrected with respect to the onsets of the AB- and the RC signal.

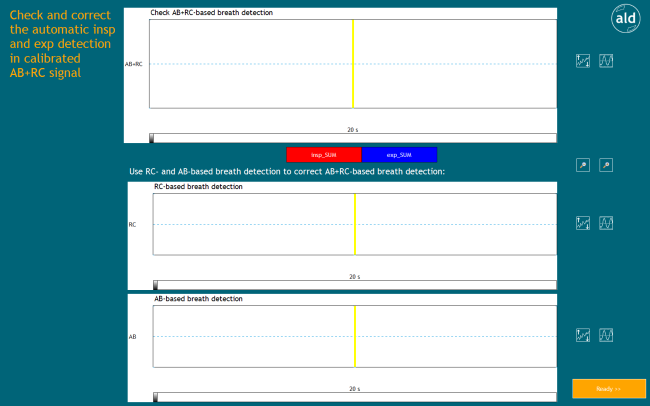

Check AB+RC-based breath detection
The calibrated AB+RC signal in the review monitor can be scrolled by dragging the scroll bar at the bottom or the yellow Center Cursor in the reviewer to the left or right.
Additionally the signals can be scaled by clicking the respective buttons at the right of this reviewer (from left to right).
1. button: automatic adaption of all signal offsets (shifting up and down)
2. button: automatic scaling of all signals (adaptation of the shown signal ranges according to the value ranges of the signals) If a signal is indicated in the reviewer and it is not visible, this might be due to an inappropriate value range.
Furthermore all review monitors can be zoomed with the two buttons in the middle at the right side (from left to right).
1. button: zoom out
2. button: zoom in
Furthermore the inspiratory- and expiratory markers can be edited in the upper reviewer. Additional markers can be dragged from the panel below the reviewer onto the signal. All markers can be shifted or deleted, if they are not at the desired position. Markers employ red cubes which arise by hovering above them. These red cubes can be moved to shift the markers. Clicking on the red cube deletes the marker.
RC-based breath detection
This reviewer shows the RC-based breath detection results from the Start app. The signal can be scrolled with the help of the scrollbar, scaled and zoomed with the respective buttons on the right.
AB-based breath detection
This reviewer shows the AB-based breath detection results from the Start app. The signal can be scrolled with the help of the scrollbar, scaled and zoomed with the respective buttons on the right.
Ready >>
This button directs to the start screen of the RIP app ("Initialization of the RIP APP") in order to start a new RIP analysis with the currently calibarted AB+RC signal.
