Initialization of the SPIRO APP: Review spirometric signals of FLOW/PRES analysis
Overview
The signals of the chosen results file can be reviewed.Details

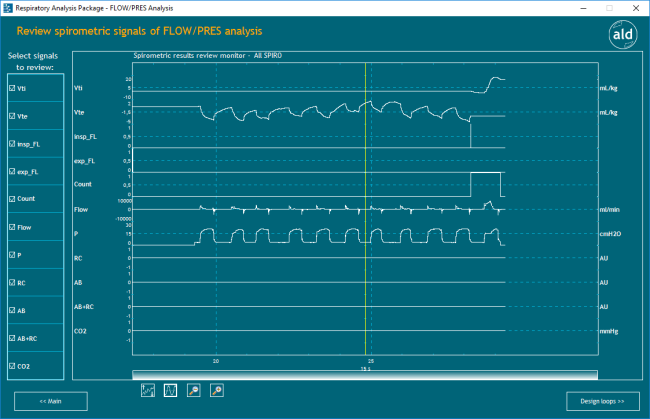

Spirometric results review monitorIn this viewer the loaded signals are previewed. The signals shown in the reviewer can be chosen by checking/ unchecking the respective channel boxes in the panel Select signals to preview:.
To scroll the signals in the reviewer, drag the scroll bar at the bottom to the left or right, or position the mouse on the yellow Center Cursor and drag it to the left or right.
Additionally the signals can be scaled and zoomed by clicking the respective buttons below this previewer (from left to right).
1. button: automatic adaption of all signal offsets (shifting up and down)
2. button: automatic scaling of all signals (adaptation of the shown signal ranges according to the range of values of the signals) If a signal is indicated in the reviewer and it is not visible, this might be due to an inappropriate value range.
3. button: zoom out
4. button: zoom in
<< Main
This button directs back to the initialization ("Initialization of the SPIRO APP").
Design loops >>
This button directs to the loop design ("Initialization of the SPIRO APP: Design Loops").
