Source file review (1. Drag over the signals to mark the data to export)
Overview
A region of interest has to be chosen from the source file, by dragging over the signals in the Original source file viewer. It is also possible to select the complete signals.Details

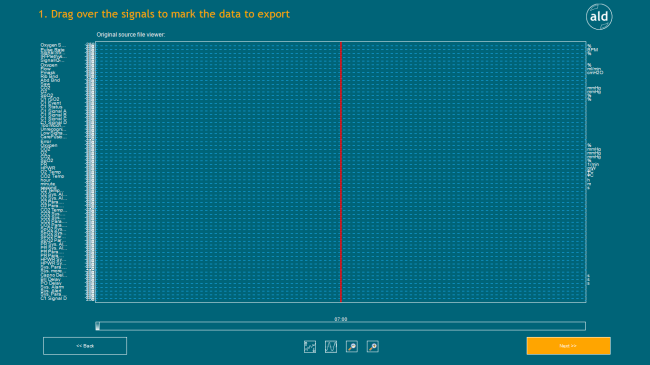

Original source file viewer
The signals in the reviewer can be scrolled by dragging the scroll bar at the bottom or the red Center Cursor in the reviewer to the left or right.
Additionally the signals can be scaled and zoomed by clicking the respective buttons below this reviewer.
1. button: automatic adaption of all signal offsets (shifting up and down)
2. button: automatic scaling of all signals (adaptation of the shown signal ranges according to the value ranges of the signals) If a signal is indicated in the reviewer and it is not visible, this might be due to an inappropriate value range.
3. button: zoom out
4. button: zoom in
Scaling can be also done with a right click on the channel name of a signal. Then a small menu opens for scaling the according signal.
<< Back>>
This button directs back to the initialization of the Export app ("Initialization (EXPORT)").
Next >>
This button directs to the channel selection for the export ("2. Select the channels to export").

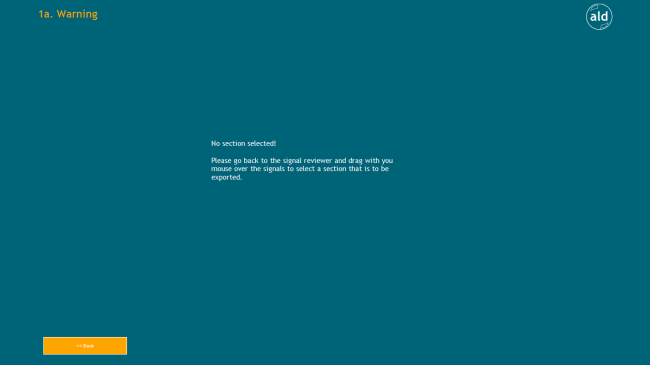

But if no regions of interest are specified, a warning pops up 1a. Warning.
The button << Back directs back to the source file review, where a region of interest can be selected in order to continue the signal export.
